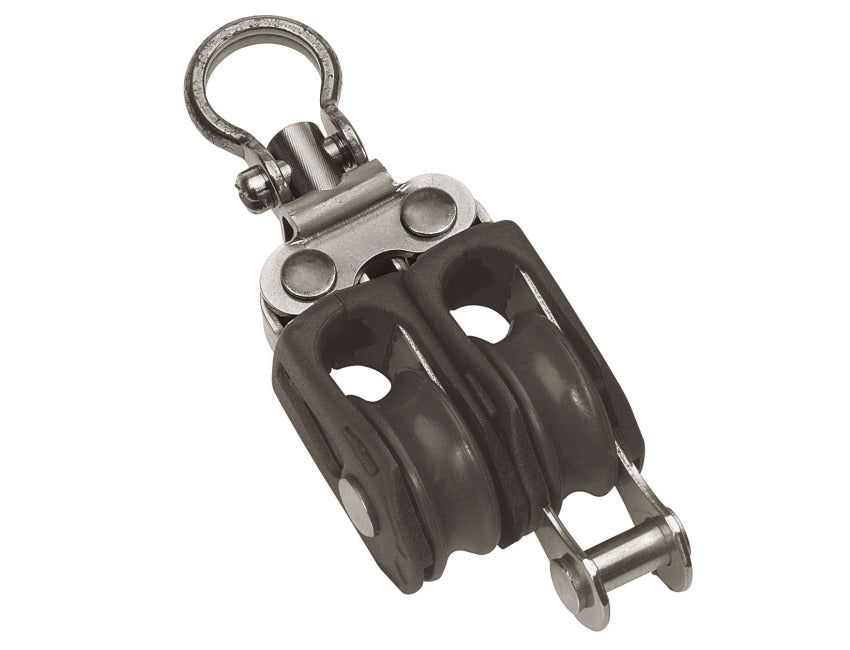

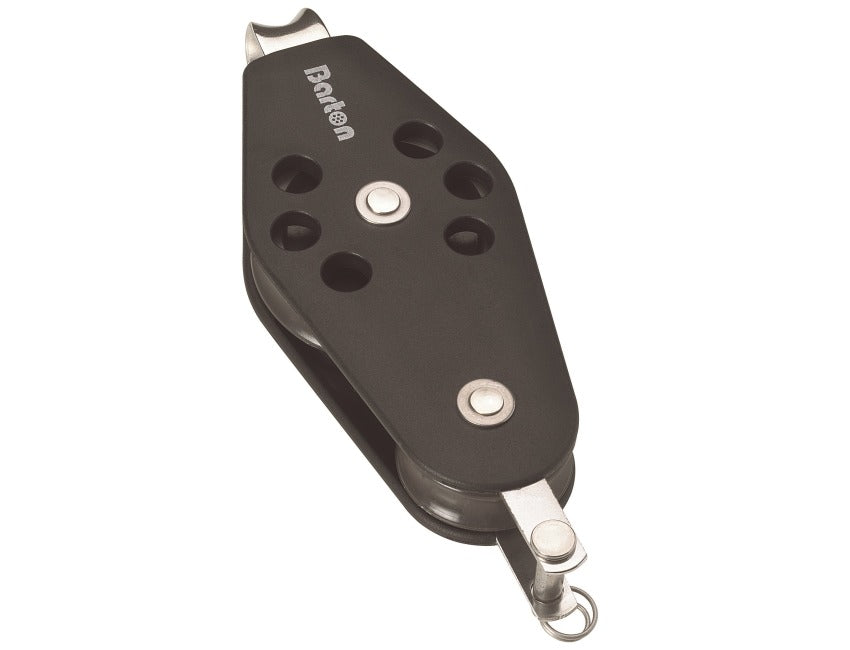

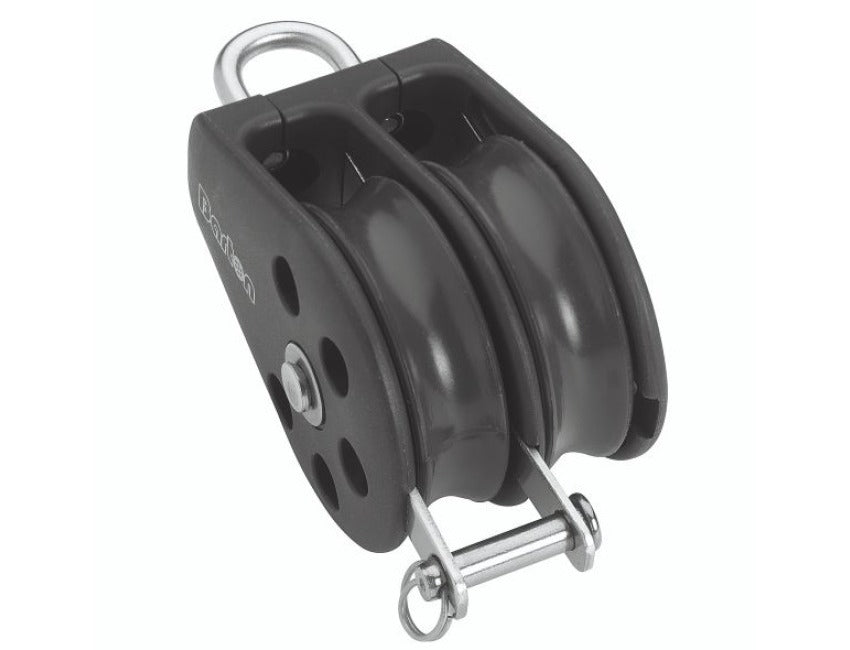

Barton Size 7 Blocks - 72 mm sheaves for ropes up to 14 mm

by Barton
Bearing Type
No. of Sheaves
Availability: translation missing: en.general.icons.icon_check_circle icon Dispatch within 5 days, or we'll contact you.

Notify me when back in stock

This range of high load cruiser bocks are of rugged construction, featuring high quality injection moulded side plates with all load-carrying components from 316 grade stainless steel. Side plates are through-bolted and riveted for added strength and security.

This good looking and versatile range is designed for use on larger cruising and racing yachts. All are designed for ease of use with our ball-bearing mainsheet traveller systems.

A comprehensive range of cam cleat, fiddle and fiddle & cam cleat versions are available.

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Sheave size Single 70mm x 20mm (2 3 /4 x 3/4")
Max rope diameter Max rope diameter 14mm ( 9 /16")
Max rope diameter SWL 1250Kg (2750 lbs)
Break load Break load 2500Kg (5500 lbs)
