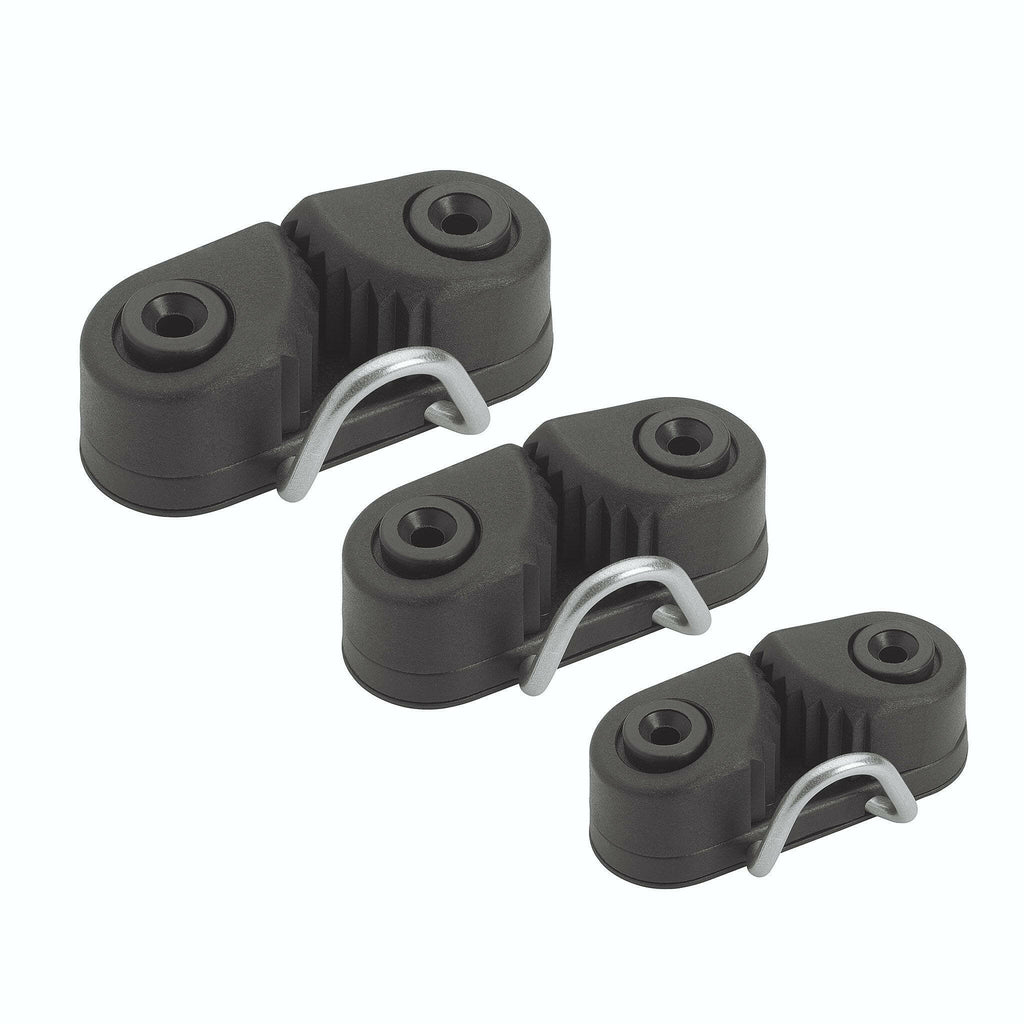

Barton 'K' Cam Cleat

by Barton
SKU RHE70100
Availability: translation missing: en.general.icons.icon_check_circle icon Dispatch within 5 days, or we'll contact you.

Notify me when back in stock

Manufactured from a composite Kevlar/Zytal material and available in 3 sizes to accept lines up to 14mm in diameter. This advanced material offers performance advantages over carbon fibre and conventional glass-reinforced resins; 'K' cams are very strong, lightweight and have excellent wear-resistance. A progressive tooth design ensures maximum holding power on all types of line, whilst maintaining minimum wear to both cam and line.

'K' Cam bases feature a stainless steel wear bar for prolonged life.

Cams utilise stainless steel leaf springs which give a smooth but positive action.

They are also stronger and have a longer life than conventional wire springs.

'K' cam cleats are supplied as cleat only plus separate accessories in grey, green, red or yellow where appropriate, to allow colour co-ordination for port, starboard etc.

Specifications 'K' cam mini 'K' cam midi 'K' cam maxi
Max Line Max Line Ø 10mm 6-12mm 10-14mm
Fastenings Fastenings Ø 4mm 5mm 5mm
Fastening centres Fastening centres 30mm 40mm 50mm
Holding power Holding power 190kg 230kg 260kg
Weight Weight 17g 34g 50g
