SS Bow Shackle
Pickup available at Arthur Beale Warehouse
Usually ready in 2 hours

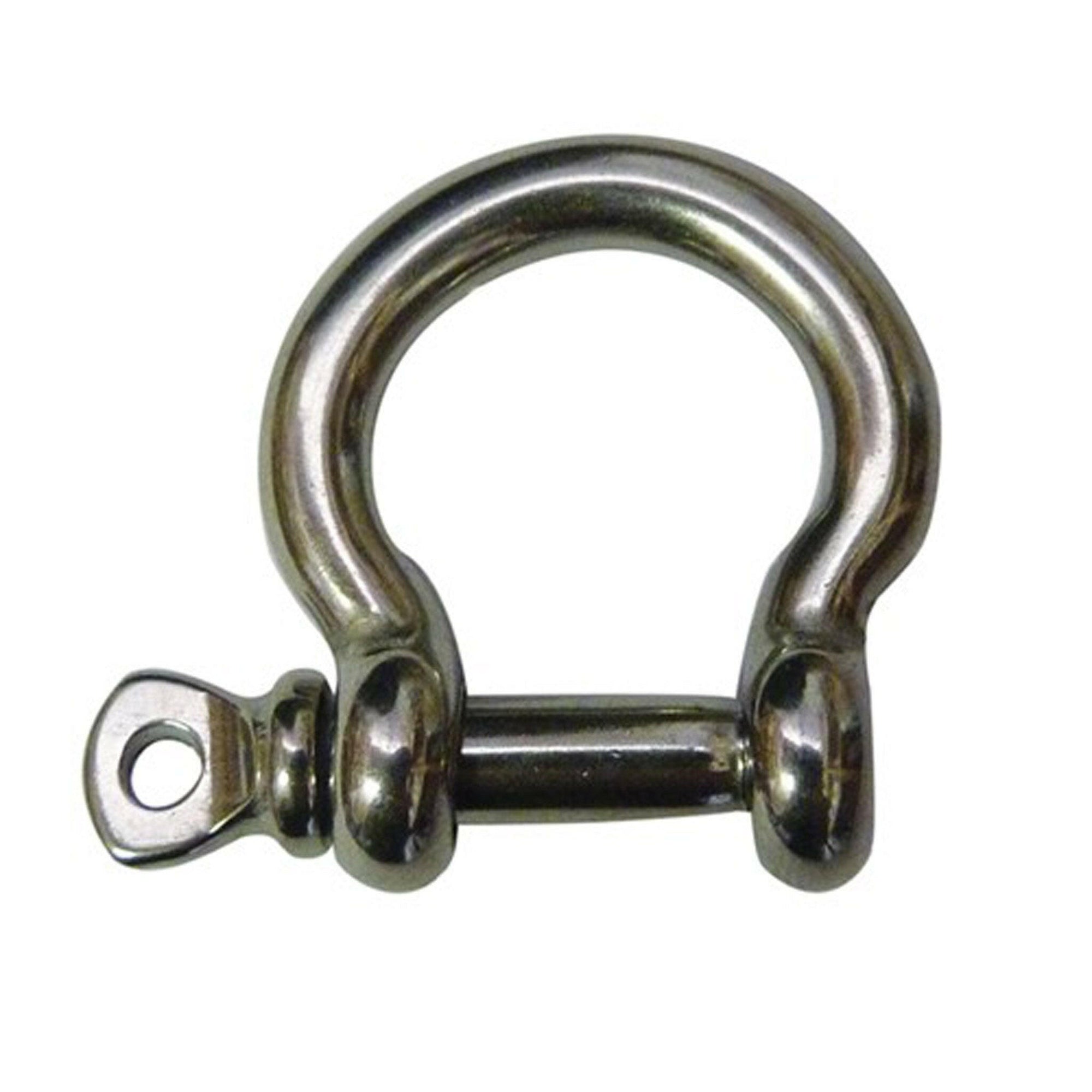

SS Bow Shackle
5 mm
Arthur Beale Warehouse
Severalles Farm
Ilmer
Princes Risborough HP27 9QZ
United Kingdom

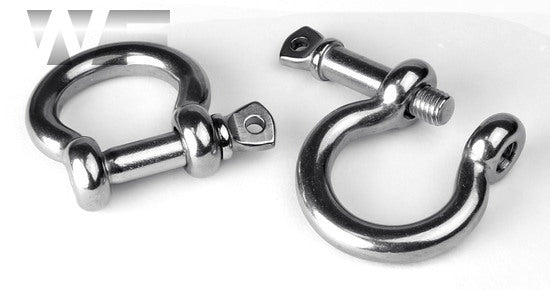

Bow Shackles are used to join more than one wire, chain or rope to an anchor point or to each other. To join a single wire to an anchor point, a Bow Shackle should be selected. These screw pin shackles are designed to be used when fastening and unfastening is reasonably frequent. If they are being left for extended periods, then the pin should be tightened and finally secured with some Monel Seizing Wire. Alternatively choose a Bolt Type Shackle.
When using a shackle it is very important it is able to articulate in the direction of the load. Shackles should be inspected before every use and at regular intervals. Checks should be made for wear, twisting, cracks and corrosion. A little Lanoguard (Anhydrous Lanolin) on the threads will safeguard against seizing.
The stainless steel used in these shackles is marine grade 316 (A4)
| Pin Diameter | Jaw Width | Length L1 | Radius R | MBL kN | MBL kgf |
| 4 mm | 8 mm | 16 mm | 14 mm | 5.8 kN | 591 kg |
| 5 mm | 10 mm | 20 mm | 17 mm | 9.1 kN | 927 kg |
| 6 mm | 12 mm | 24 mm | 21 mm | 13.2 kN | 1,346 kg |
| 8 mm | 16 mm | 32 mm | 28 mm | 23.7 kN | 2,416 kg |
| 10 mm | 20 mm | 40 mm | 35 mm | 37.8 kN | 3,853 kg |
| 12 mm | 24 mm | 48 mm | 42 mm | 54.9 kN | 5,596 kg |
| 16 mm | 32 mm | 64 mm | 97.7 kN | 9.962 kg | |
| 19 mm | 38 mm | 76 mm | 136.1 kN | 13,878 kg |
