Wichard Long Captive Pin D Shackle

WichardSKU: RIGWD-1411

Size: 4 mm
Price:
Sale price£8.99 GBP

Tax included Shipping calculated at checkout

Stock:
Sold out

Pickup currently unavailable at Arthur Beale Warehouse

Description

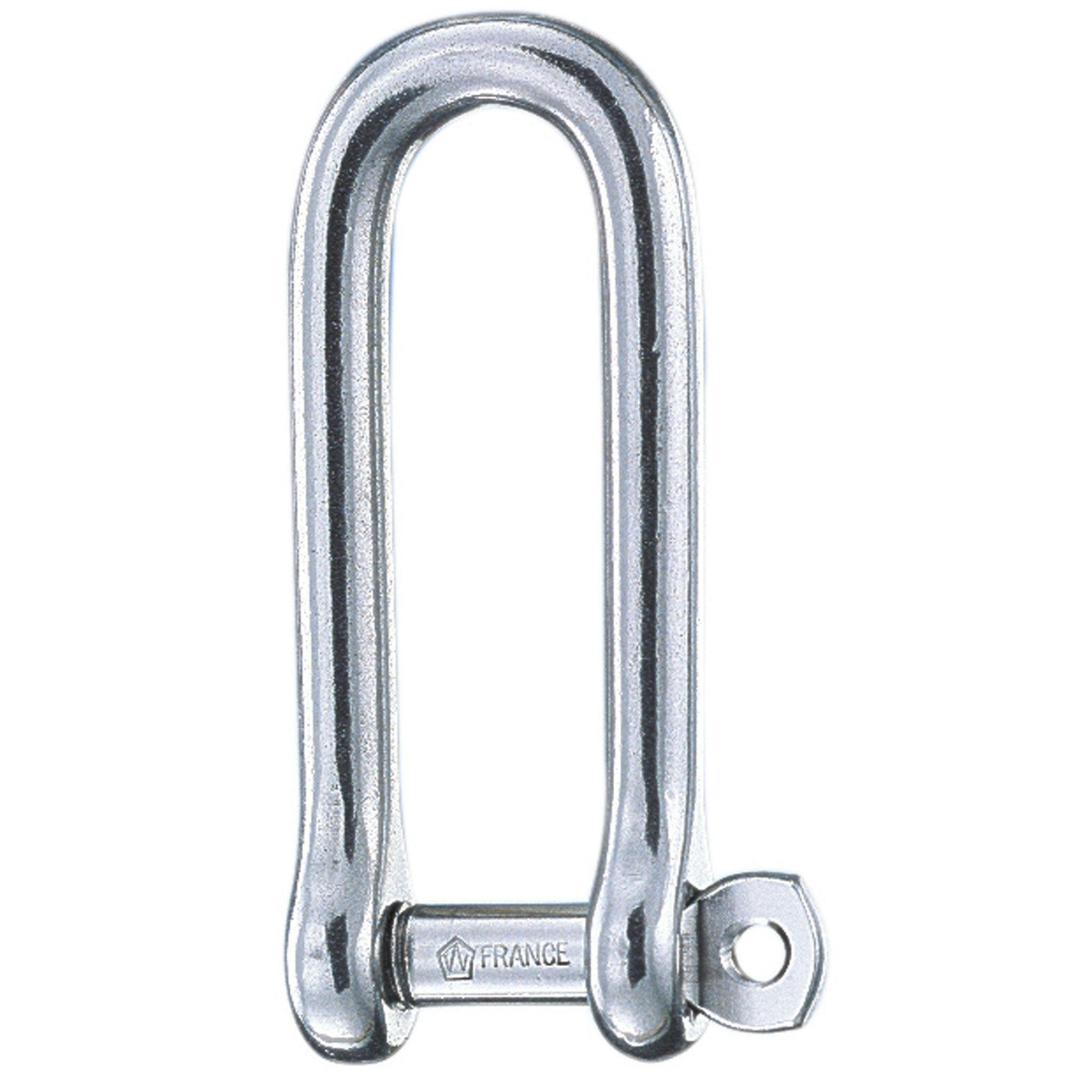

Forged CE stainless steel captive pin long D shackle.

Captive pin 'patented'.

Not only are these self-locking, the pin is also connected to the body at all times, even when fully opened. Consequently, there is no more risk of seeing it fall in the water, which would make the shackle unusable. These shackles can therefore be fitted completely safety using just one hand.

Hot dropped forged from a single piece of stainless steel, adding strength and consistency of manufacture for total security and reliability. The technical characteristics of every Shackle is closely controlled and tested before, during and after the manufacturing process.

Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments.

CE marked in accordance with the Machines Directive 2006/42, these Wichard products can be used as lifting accessories. Each product displays the following information:

  • Working Load Limit (WLL) = 5:1 safety factor of the break load,
  • CE marking,
  • Product origin,
  • Manufacturer’s logo.

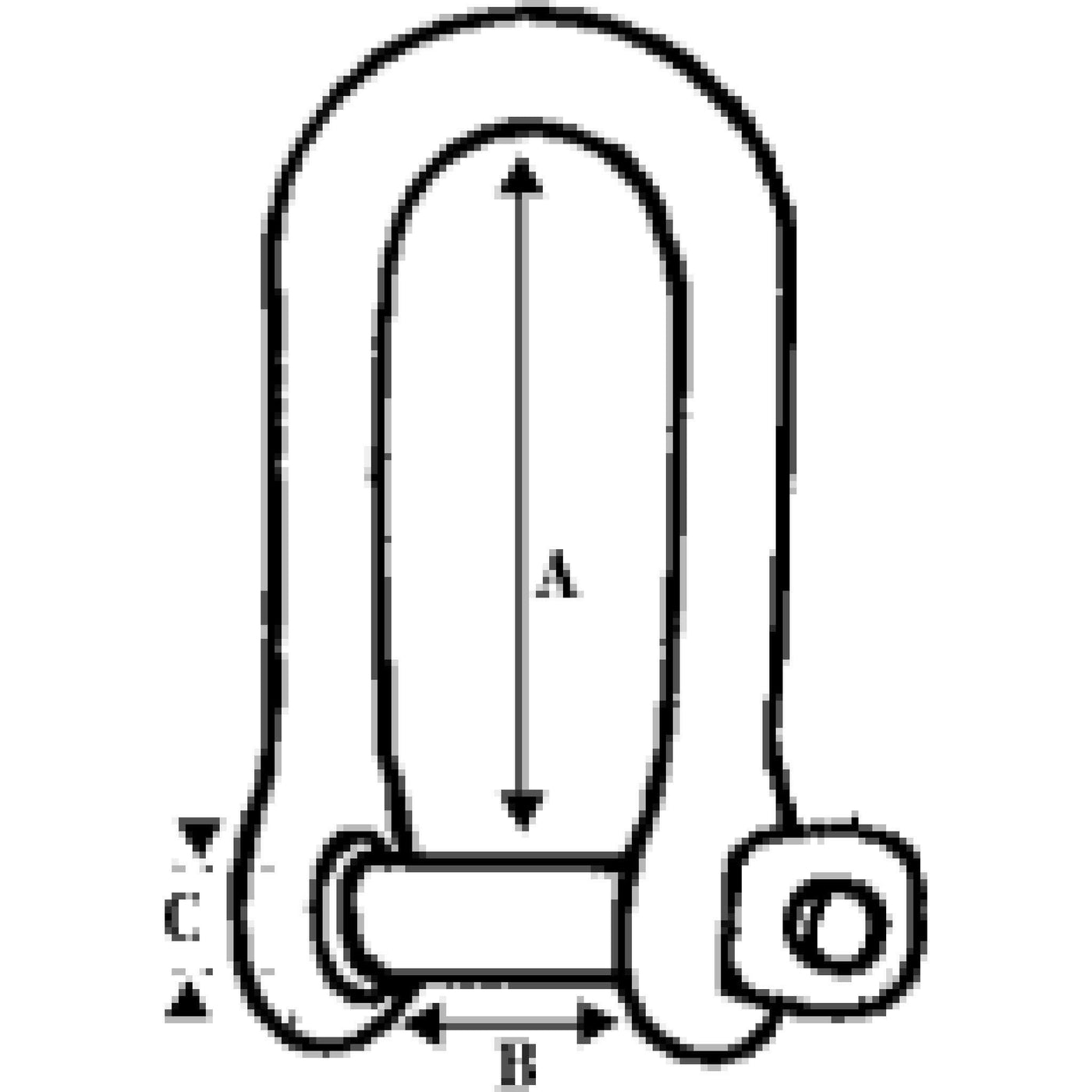

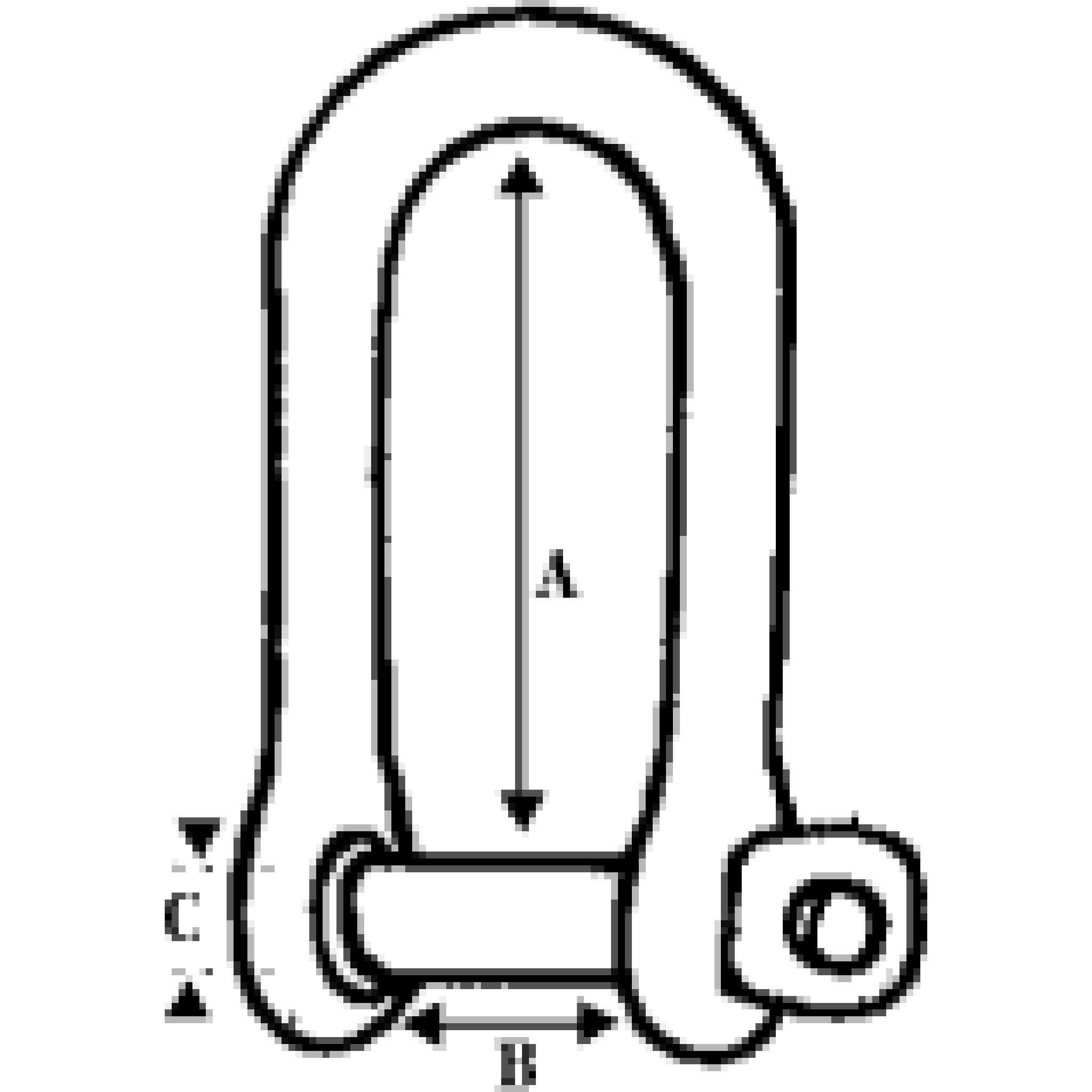

Pin Dia.
mm
A
mm
B
mm
C
mm
Work
Kg
BL
Kg
WLL
Kg (5:1)
Weight
Kg
4 31 8 5 320 1000 200 0.012
5 39 10 6 480 1500 300 0.024
6 46 12 7 680 2200 440 0.040
8 62 16 9 1000 3600 720 0.092
