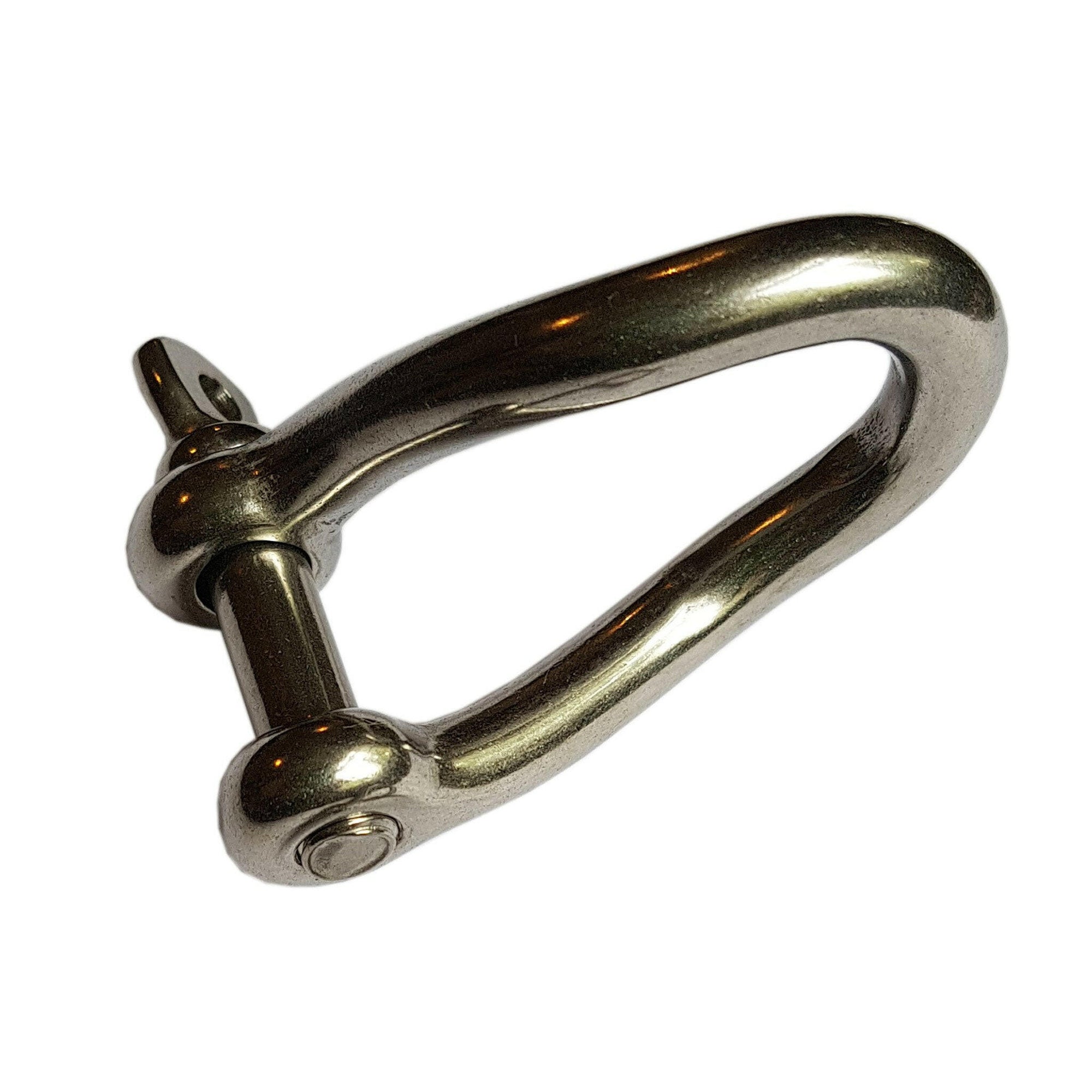

Twisted D Shackle - Stainless Steel
by Arthur Beale
Occasionally a normal shackle will not sit neatly and a twisted shackle is required. More often than not this applies when they are used with webbing around the pin as with Jack Stays which need to lie flat on the ground.
|Pin Diameter||Internal Width||Length||Breaking Load|
|5 mm||10 mm||30 mm||927 kg|
|6 mm||12 mm||36 mm||1,345 kg|
|8 mm||16 mm||48 mm||2,416 kg|
