Kong Carbine Hook No Eye - Stainless Steel
Pickup available at Arthur Beale Warehouse
Usually ready in 2 hours
Kong Carbine Hook No Eye - Stainless Steel
80 x 8 mm
Arthur Beale Warehouse
Severalles Farm
Ilmer
Princes Risborough HP27 9QZ
United Kingdom
Carbine Hooks are also often referred to as Snap Hooks, Carabiners or Karabiners. I don't suppose there is a right or wrong term, but we are sticking with "Carbine Hooks".
A carbine is a gun with a barrel slightly shorter than a riffle.

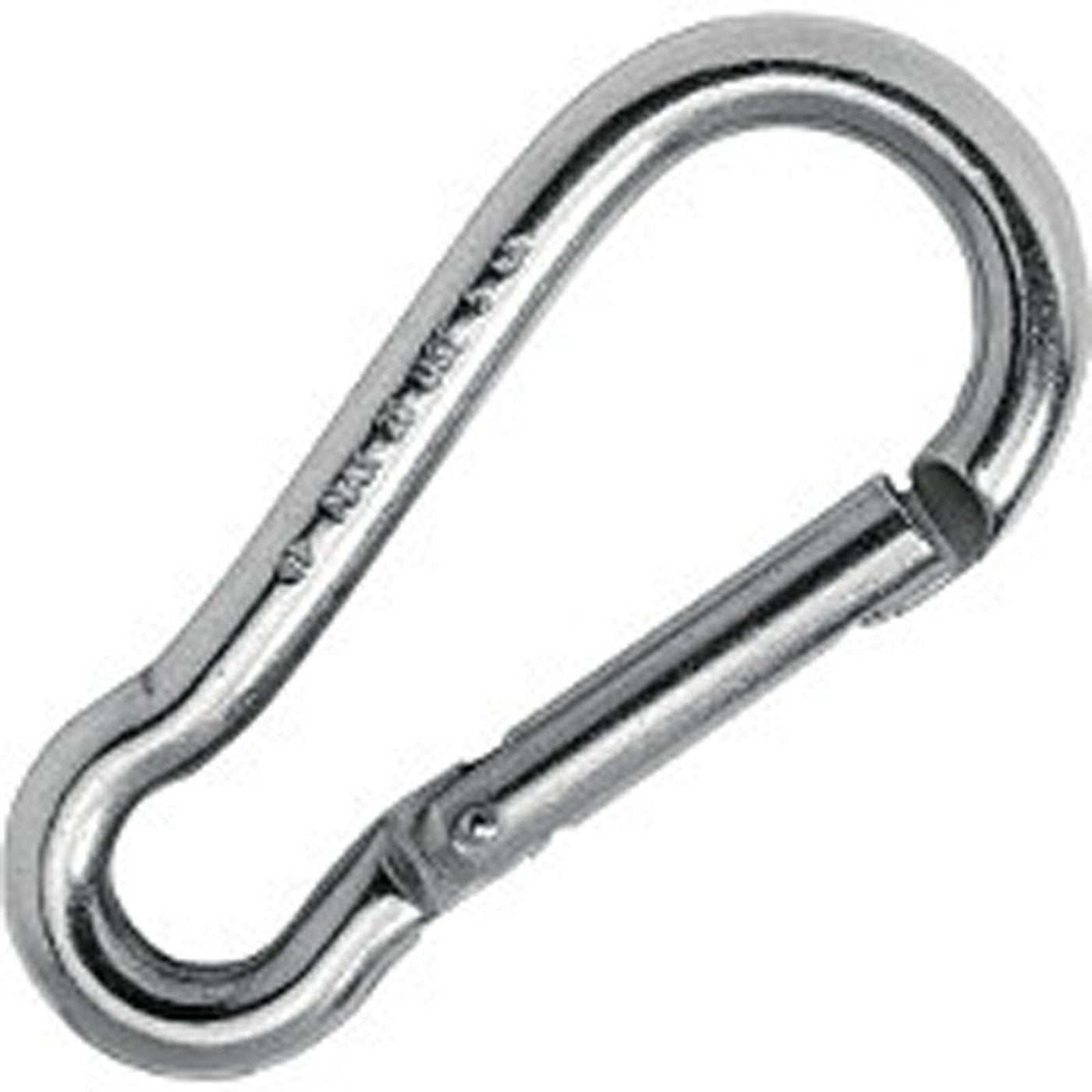

Load rated stainless steel carbine hook with no eye.
Each hook individually stamped with break load and features the patented Kong Key Lock System.
Complies with DIN 5299
Stainless Steel (AISI 316)
Arthur Beale says:
The Kong Key Lock system is a massive improvement on the usual carbines which normally have a sharp, flesh tearing and rope snagging, notch near the opening. These Kong carbines have a very smooth inside face so you can say goodbye to trashed ropes and pools of blood on the teak decks.

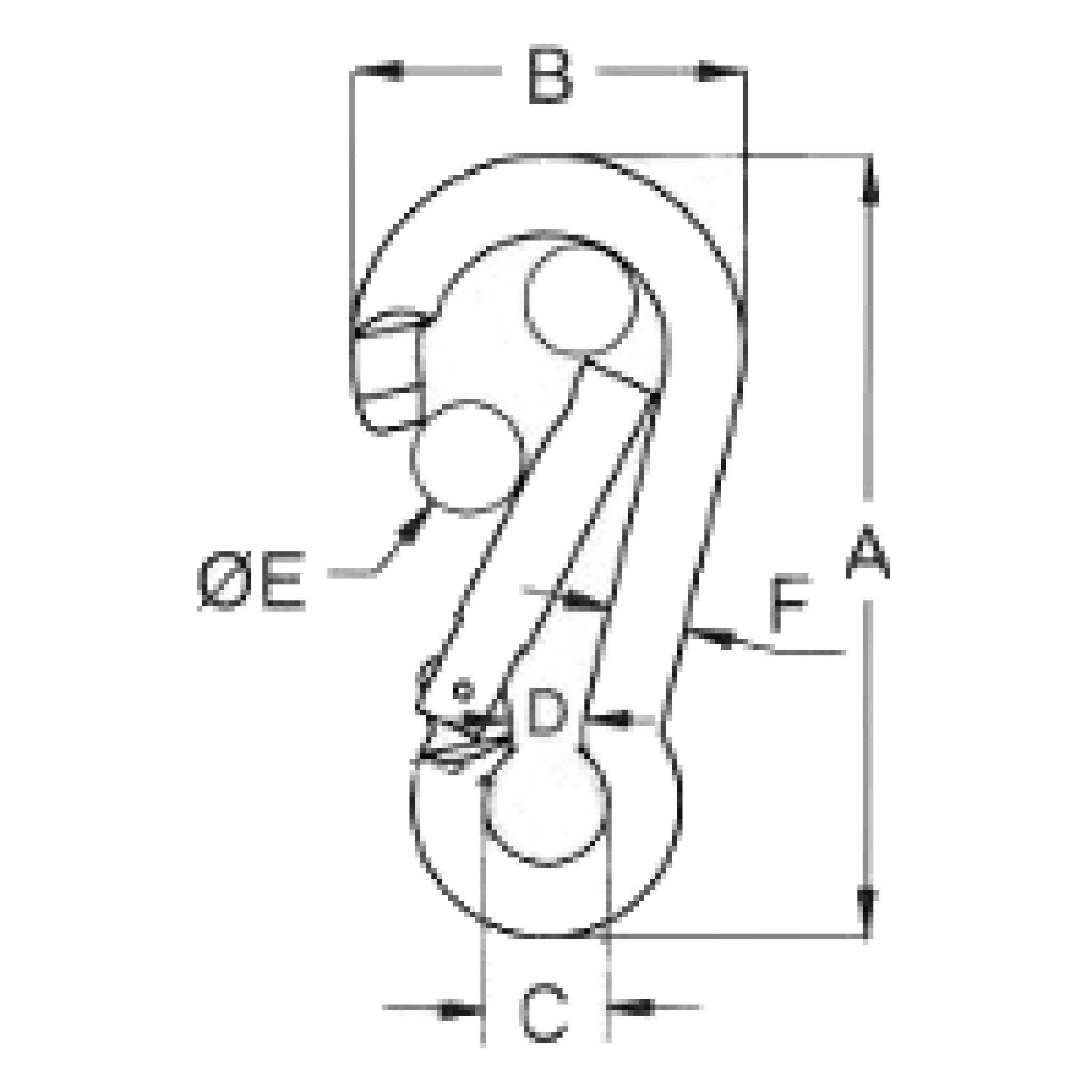

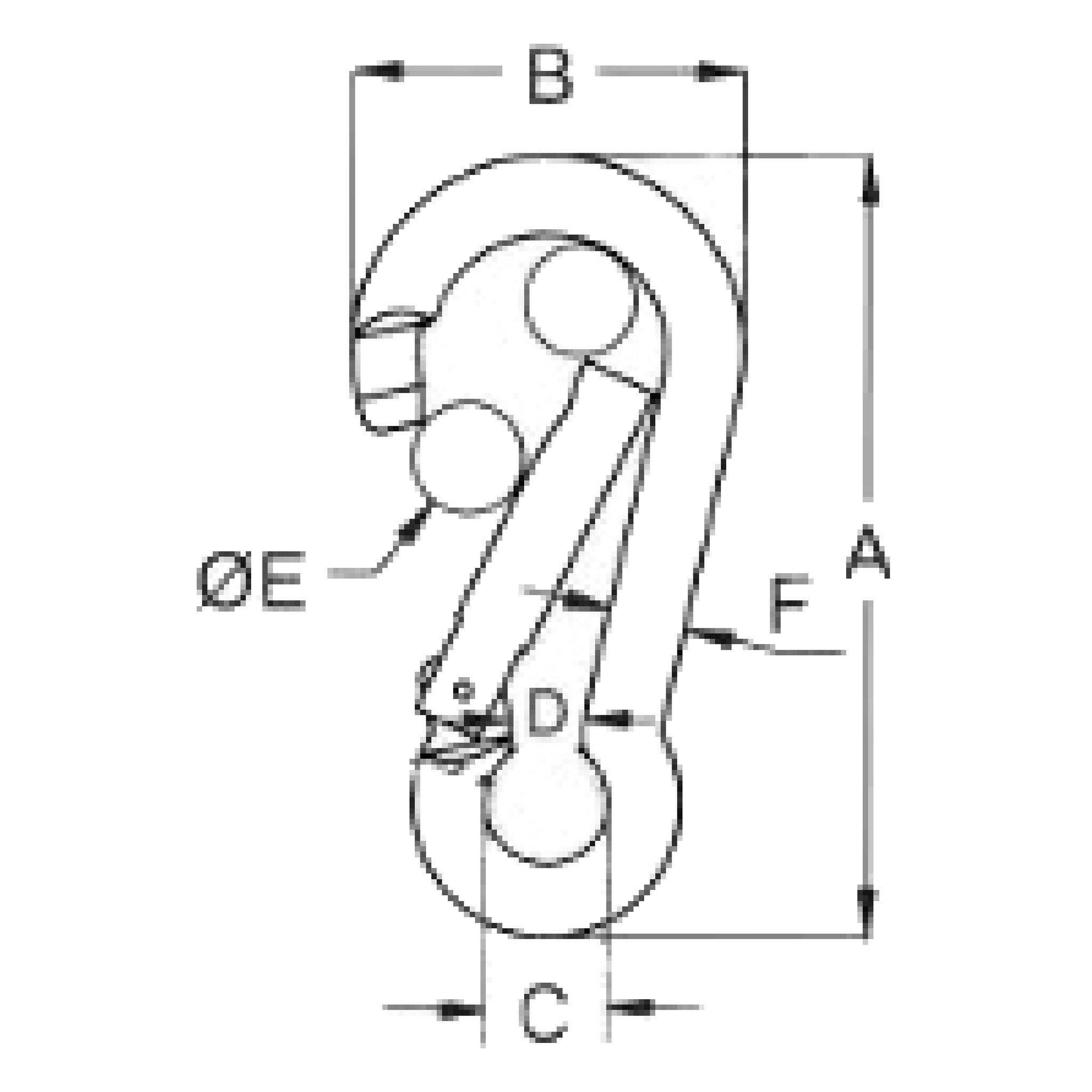

| Part | A mm |
F mm |
C mm |
D mm |
E mm |
B mm |
Break Load Kg. |
|---|---|---|---|---|---|---|---|
| RIGKG-CC05 | 50 | 5 | 8 | 5 | 7.5 | 25 | 120 |
| RIGKG-CC06 | 60 | 6 | 9 | 5 | 9 | 30 | 120 |
| RIGKG-CC07 | 70 | 7 | 10 | 8 | 9 | 34 | 180 |
| RIGKG-CC08 | 80 | 8 | 11 | 8.5 | 11 | 38 | 800 |
| RIGKG-CC10 | 100 | 10 | 15 | 10 | 15 | 48 | 1200 |
| RIGKG-CC12 | 120 | 11 | 18 | 14 | 17 | 57 | 2000 |
| RIGKG-CC16 | 160 | 13 | 23 | 18.5 | 30 | 80 | 2400 |
