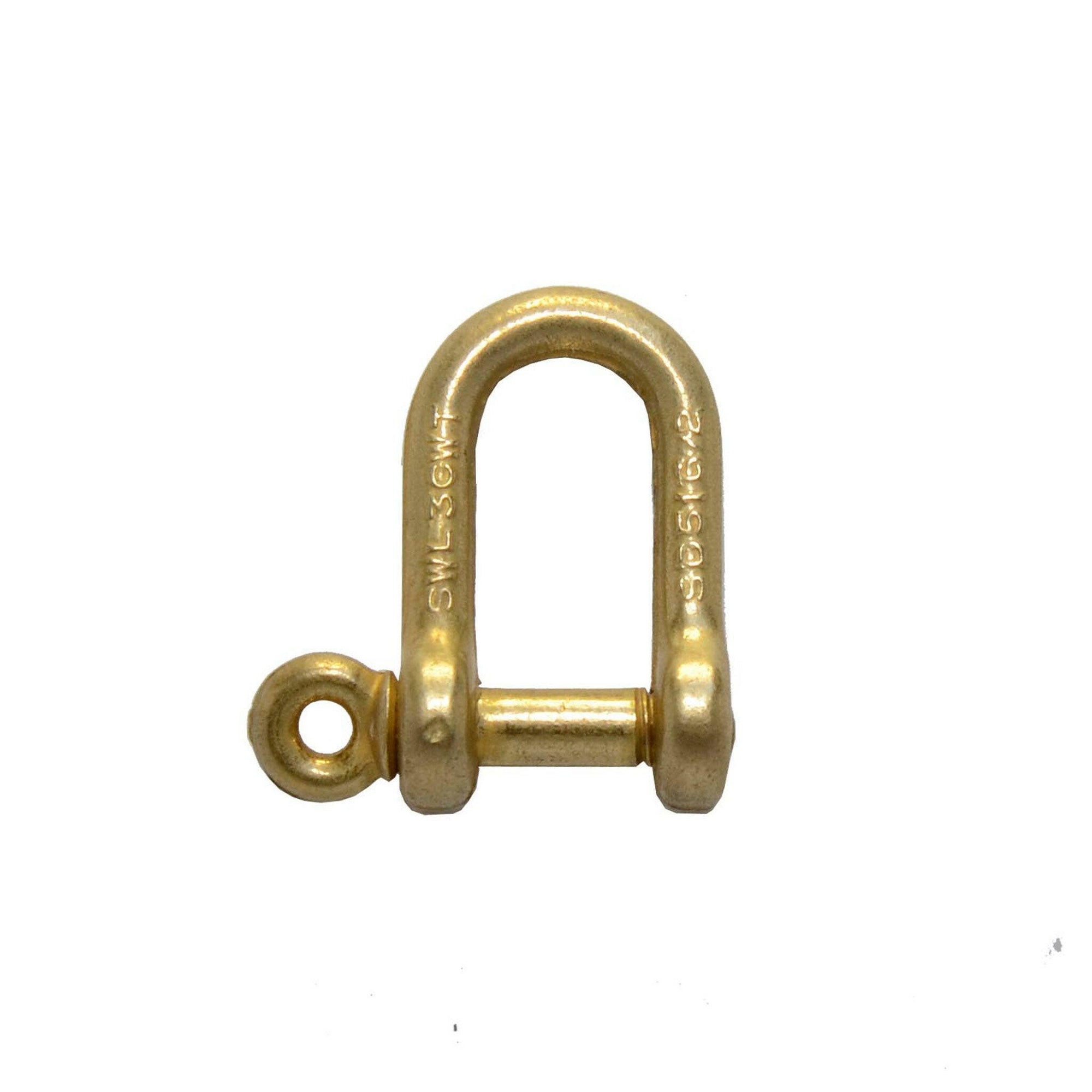

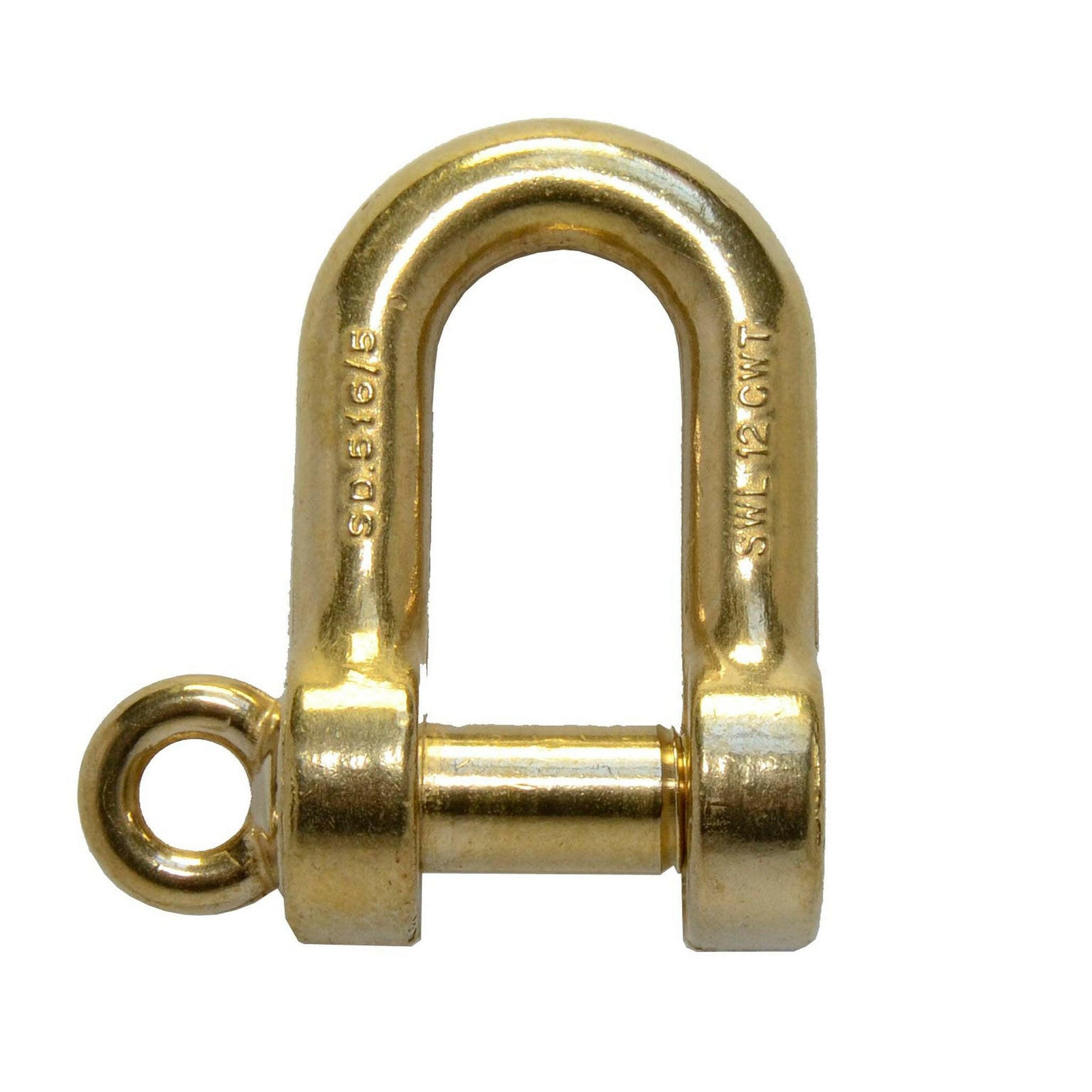

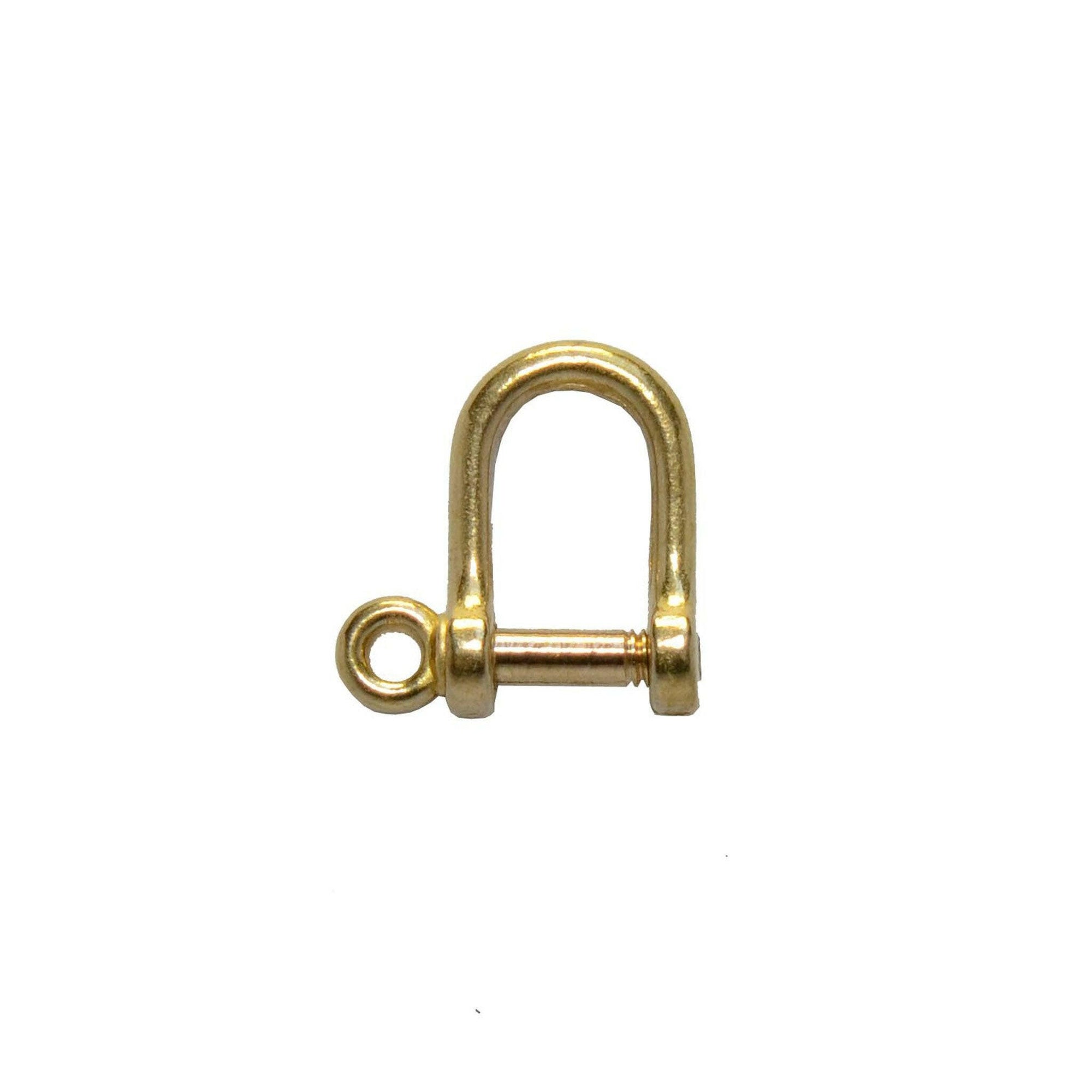

Bronze Dee Shackles
These British Made shackles are forged from manganese bronze for strength and resilience to corrosion. Our shackles have a polished finish. The approximate working load limit is cast onto the body of the shackle. It is stated in British long or imperial hundredweight (cwt) which is 112 lbs or 50.8 kg. The working load limit is based on a safety factor of 4 to 1.
Use Dee shackles for single point lifting - use Bow shackles when more than one line is being attached to the body of the shackle.

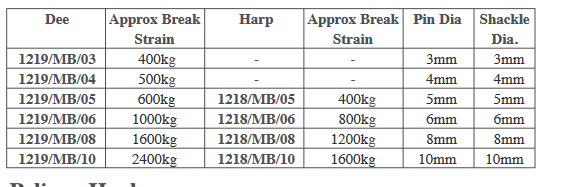

|Diameter||Approx. Safe Working Load||Approx. Breaking Load|
|4 mm||125 kg||500 kg|
|5 mm||150 kg||600 kg|
|6 mm||250 kg||1000 kg|
|8 mm||400 kg||1600 kg|
|10 mm||600 kg||2400 kg|
