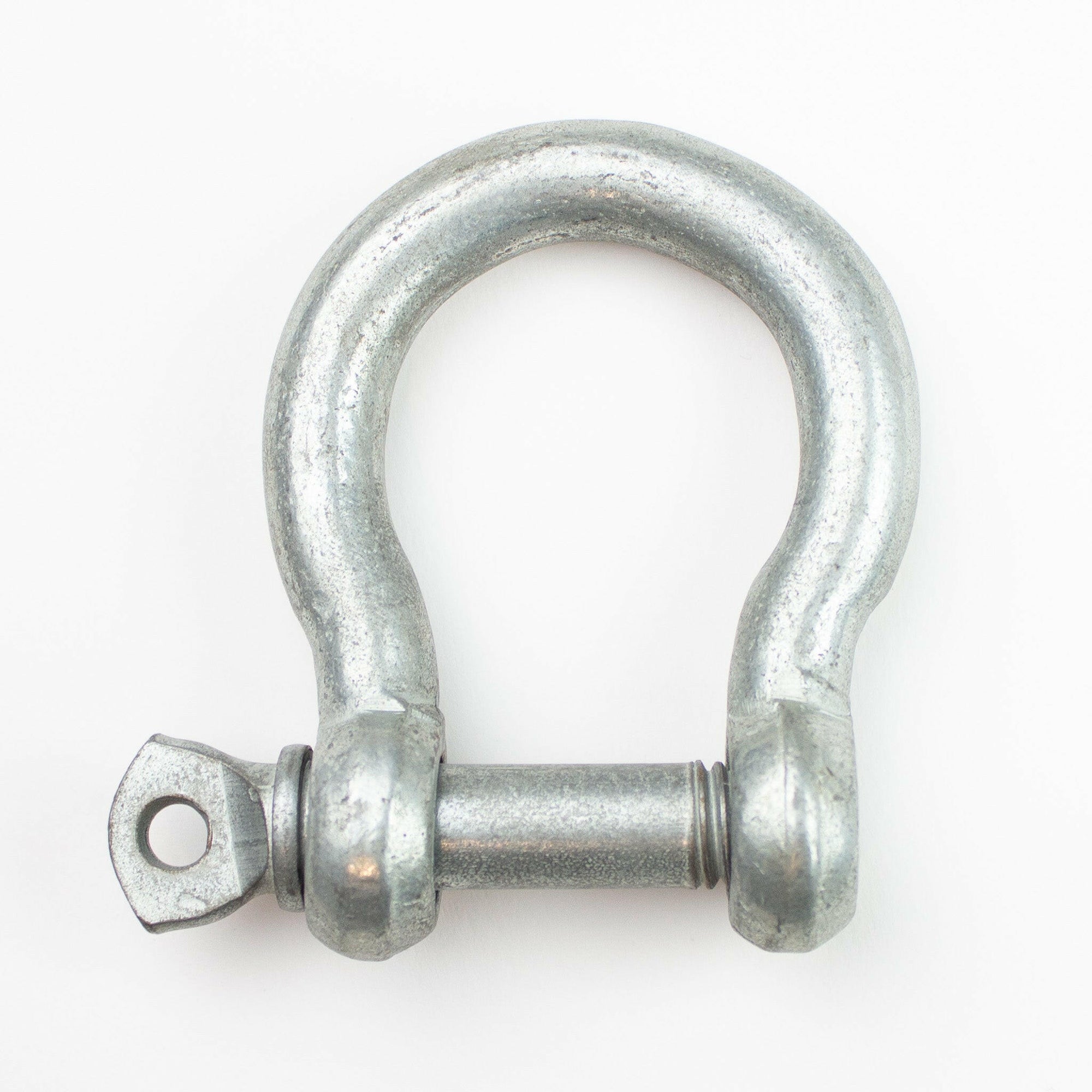

Bow (Harp) Shackle Galvanised Steel
Pickup available at Arthur Beale Warehouse
Usually ready in 2 hours
Bow (Harp) Shackle Galvanised Steel
5 mm
Arthur Beale Warehouse
Severalles Farm
Ilmer
Princes Risborough HP27 9QZ
United Kingdom
An economical general purpose bow shackle. Bow shackles are used when more than one rope needs to be attached. Not to be used for lifting purposes.
Note:
These shackles are bright zinc plated and not hot dipped galvanised. We would not recommend them for salt water marine use.
| Pin Diameter | Interior Length to Pin Centre | Jaw Width |
| 5 mm | 22 mm | 10 mm |
| 6 mm | 29 mm | 13 mm |
| 8 mm | 34 mm | 17 mm |
| 10 mm | 44 mm | 18 mm |
| 12 mm | 57 mm | 25 mm |
| 16 mm | 75 mm | 32 mm |
| 20 mm | 88 mm | 40 mm |
Choose options
