Name: Blue Wave Stainless Steel Thimble
Brand: Blue Wave
SKU: THBBW-110002
Price: 0.2 GBP
Availability: OutOfStock

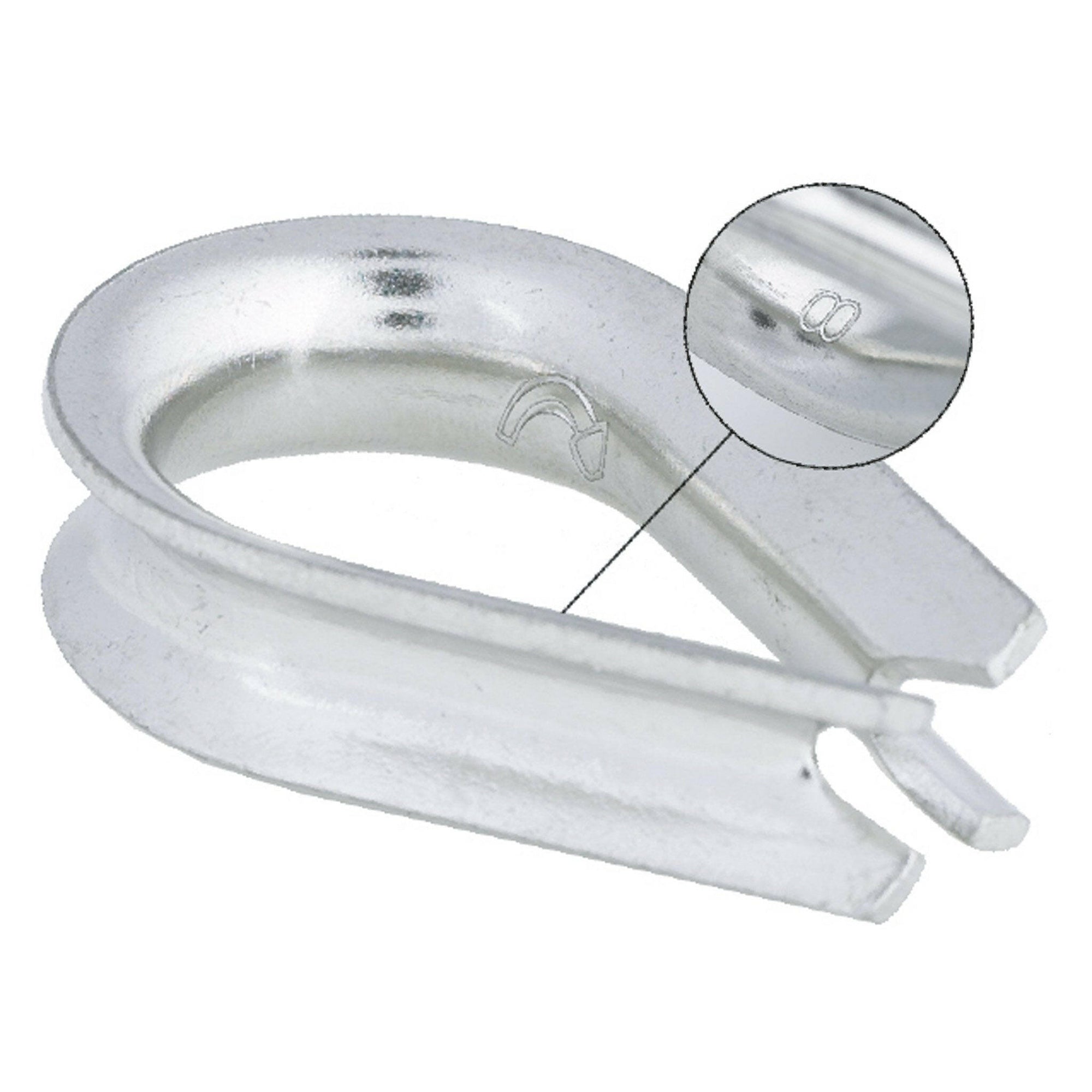

Stainless steel thimbles

The thimbles from Blue Wave are known worldwide for supreme quality and are often the first choice for the harsh environment of the marine sector.

Polished stainless steel AISI 316.

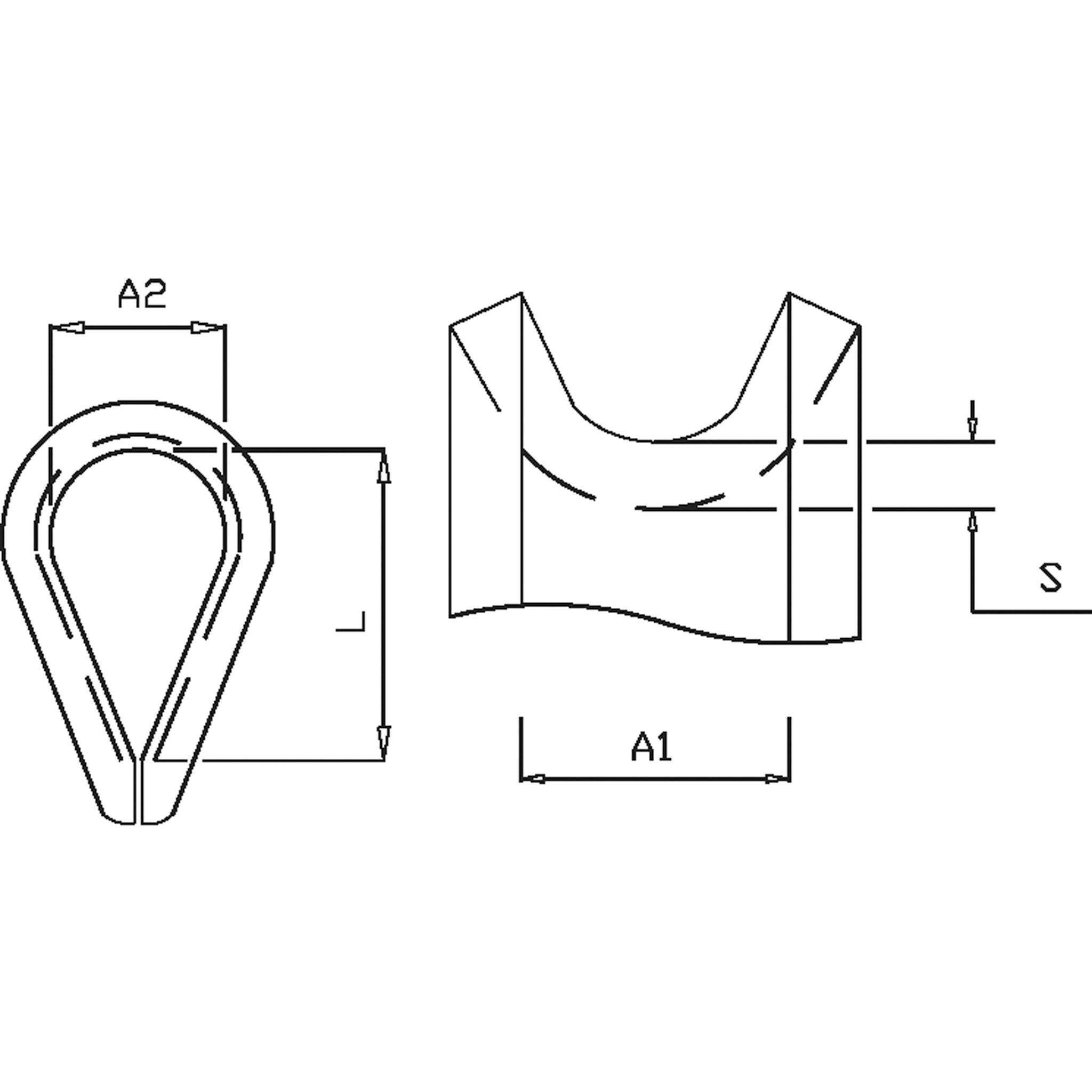

Wire/Rope Ø mm	A1 mm	A2 mm	L mm	S mm
2	3	9	17	1
3	4	10	18	1
4	5	11	20	1.2
5	6	13	21	1.2
6	7	15	27	1.5
7	8	19	33	1.5
8	9	22	38	2
9	10	24	41	2
10	11	27	48	2.5
12	14	29	53	2.5
14	16	32	57	3
16	18	40	67	3
18	20	45	75	4
20	22	52	84	4
22	24	56	96	5
