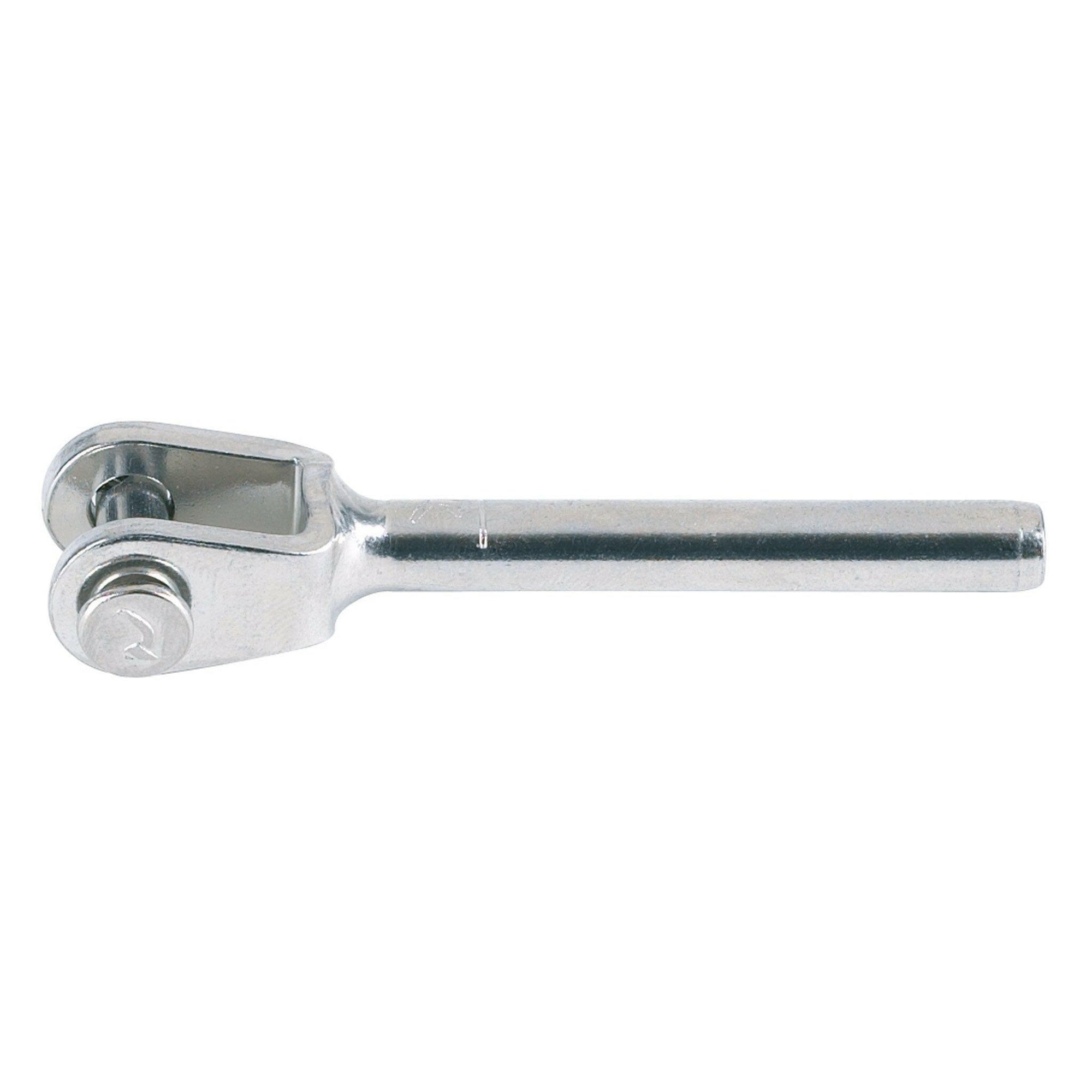

Swage welded fork wire terminal. Other sizes available to order
Stainless steel AISI 316.
| Wire Dia mm |
Pin Dia mm |
A mm |
D2 mm |
L1 mm |
L2 mm |
T mm |
Break Load Kg. |
|---|---|---|---|---|---|---|---|
| 2.5 | 5.0 | 7.5 | 5.5 | 58 | 32 | 12.0 | 800 |
| 3 | 5.0 | 7.5 | 6.35 | 67 | 38 | 12.0 | 800 |
| 3 | 6.0 | 9.5 | 6.35 | 68 | 38 | 13.0 | 1300 |
| 4 | 6.0 | 9.5 | 7.5 | 73 | 45 | 13.0 | 1500 |
| 4 | 8.0 | 11 | 7.5 | 77 | 45 | 15.0 | 1700 |
| 5 | 6.0 | 9.5 | 9.0 | 83 | 51 | 13.0 | 1500 |
| 5 | 8.0 | 11 | 9.0 | 87 | 51 | 15.0 | 2400 |
| 6 | 8.0 | 11 | 12.58 | 99 | 64 | 15.0 | 3200 |
